Description

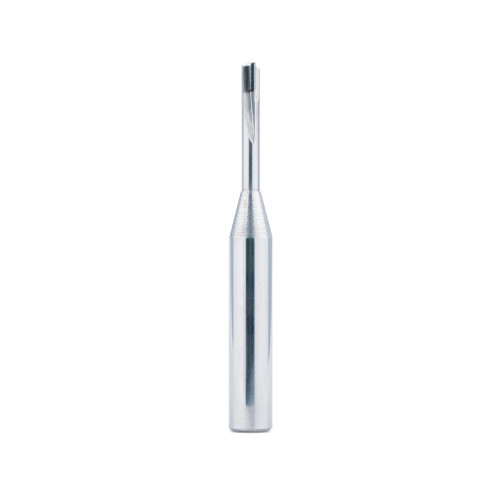

Bring hand-buffed clarity straight off the CNC. The CLEar Cut™ MCD Polishing Router Bit uses a monocrystalline diamond edge to produce glass-clear finishes on acrylic, PC, PETG, and more—often eliminating flame polishing.
- Depth of Cut (DOC): Clearance length you can machine to without the 6 mm shank rubbing the wall.
- Length of Cut (LOC): Equals the diamond length—your effective polishing length on the final pass.
- Finish: Mirror-grade clarity with reduced haze and swirl.
- Edge life: True MCD wear resistance for long, consistent runs.
- Stability: 6 mm shank supports smooth, chatter-free polishing at high RPM.
Suggested use: Run high spindle RPM with light step-over/step-down on a dedicated polishing pass. Use rigid workholding, accurate length setting, and keep chips clear (dry or light mist). Reserve this tool for finishing only.
Specifications (Metric / Inch):
CED: 6 mm (0.236″) | SH: 6 mm (0.236″) | LOC (Diamond Length): 8.5 mm (0.335″) | DOC (Depth of Cut / Clearance): 33 mm (1.299″) | OAL: 60 mm (2.362″)
Note: Use the DOC as your safe wall-clearance depth and the diamond LOC as your effective polishing length. Requires a 6 mm collet.
