Flat Shank Knife Blades
Zund EOT, POT, UCT and VCT blades are flat shank blades. Zund's catalog calls its UCT and SCT drag blades flat-stock. Every Zund-pattern blade we make for these tools has a flat shank. So do most of our Colex and Summa replacement blades, our Esko Kongsberg BLD-SF and BLD-DF replacements, and the blades for the MultiCam KH1, KH2, KH3, KH4 and KH20 holders.

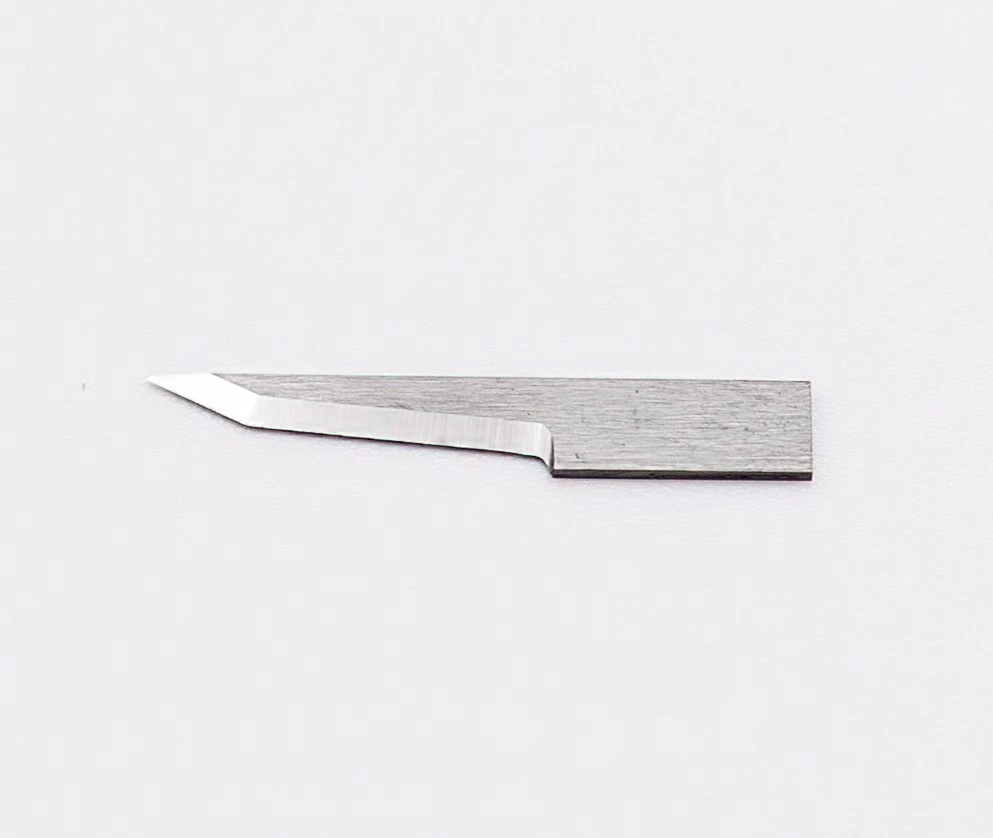

- Flat Shank Oscillating Knife Blades: Zund-pattern oscillating blades for the EOT, EOT-250 and POT.

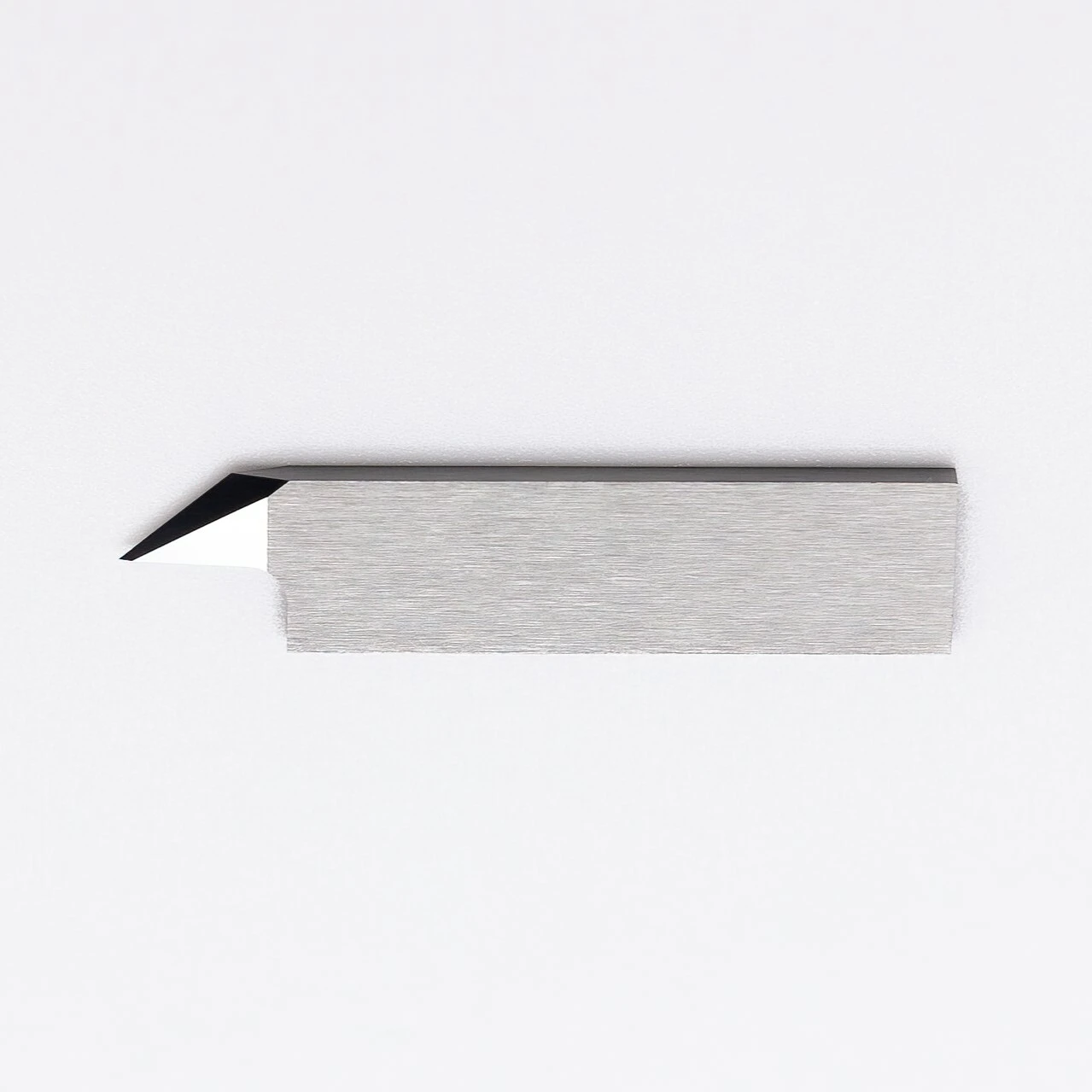

- Flat Shank Drag & Mat-Cutting Knife Blades: drag blades, sword blades and Zund PPT mat-cutting blades.
- V-Cut Knife Blades: V-cut and V-notch blades.
Round shank blades are on Round Shank Knife Blades.
Thickness and width decide the holder
Most flat blades are 0.63 mm or 1.5 mm thick. The thickness and the shank width (in brackets) decide which holder takes the blade. On the Esko Kongsberg MP HF knife tool, the adapter also depends on the blade.
| Machine | 0.63 mm thick | 1.5 mm thick |
|---|---|---|
| Zund | EOT, EOT-250, POT: CZ20, CZ21, CZ22, CZ23 (4 mm), CZ41 (4.4 mm), CZ42 (5.5 mm), CZ26, CZ29 (5.65 mm), CZ43 (6.3 mm) UCT, SCT, PCT and EOT, EOT-250, POT: CZ16, CZ17 (5.65 mm) PPT: CZ30, CZ31 (3.3 mm), CZ33 (6.3 mm), CZ35 (13 mm) T75: CZ70 (5.65 mm) | EOT-250, POT: CZ60, CZ61 (5.5 mm) UCT, SCT: CZ46 (6 mm), CZ10, CZ11, CZ44 (8 mm) |
| MultiCam | KH2: CZ21, CZ22 (4 mm) KH1: CSF216, CZ70 (5.65 mm) | KH4: CZ60, CZ61 (5.5 mm), CSF246 (5.55 mm) KH3: CDF112, CDF113, CK23, CZ44 (8 mm) |
| Esko Kongsberg | MP HF knife tool, adapter 34044107: CZ20, CZ21, CZ22, CZ23 (4 mm), CZ29 (5.65 mm) MP HF knife tool, adapter 34050401: CZ16, CZ17, CZ26, CSF216 (5.65 mm) Static Knife Single Edge: CZ30, CZ31 (3.3 mm), CZ16, CZ17, CSF216 (5.65 mm), CZ33 (6.3 mm) | Static Knife Double Edge: CSF246 (5.55 mm), CZ46 (6 mm), CDF213 (8 mm) Hi-Force, Static Knife, VariCut: CDF112, CDF113 (8 mm) |
| Summa | 500-9320: CZ20, CZ21, CZ22, CZ23 (4 mm) | 500-9314: CZ46 (6 mm) 500-9313: CDF112, CDF113 (8 mm) |
| Colex | T00126: CZ20, CZ21, CZ23 (4 mm), CZ29 (5.65 mm) | T00120: CDF112, CDF113 (8 mm) T00139: CT330 (8 mm) |
| Aristo | 4560: CZ20, CZ21, CZ22 (4 mm) 7085, 7111: CZ42 (5.5 mm), CSF216 (5.65 mm, also 7563) | 4570: CZ46 (6 mm) 4520, 4550: CDF112, CDF113 (8 mm) |
| AXYZ | Tangential with saber blade holder: CDF213 (8 mm) |
Other thicknesses: CZ71 (1 mm) fits the Zund VCT, MultiCam KH20 and Summa 500-9340 to 500-9344. CDF570 (0.9 mm) fits the Esko Kongsberg VI45-16 and VI30-16 V-notch inserts. CT335 (0.4 mm) fits the Colex T00138. Each blade's page lists every tool it fits.
Brand names are trademarks of their owners, used here only to show compatibility.
