HSK Collet Chucks

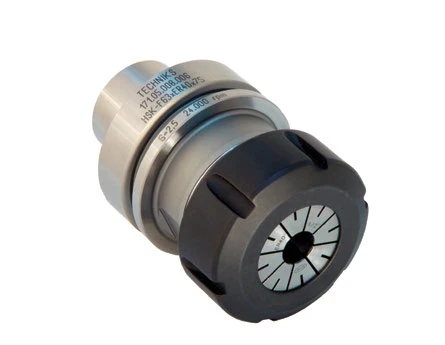

HSK collet chucks: HSK63F and HSK50F holders for CNC routers, and HSK32E, HSK40E, HSK50E and HSK63E holders for HSK E spindles. They take ER16, ER25, ER32 or ER40 collets, and one HSK63F holder takes SYOZ25 collets. Balanced to 25,000 RPM at G2.5, with 0.0001" runout (T.I.R.) measured from taper to collet pocket and a PowerCOAT nut included. Collets are sold separately.
| Spindle | Collet | Gauge lengths |
|---|---|---|
| HSK63F | ER16 | 60, 100 mm |
| HSK63F | ER32 | 70 mm |
| HSK63F | ER40 | 75, 90, 115, 125 mm, and 75 mm with left-hand thread |
| HSK63F | SYOZ25 | 80 mm |
| HSK50F | ER32 | 80 mm |
| HSK32E | ER25 | 60 mm |
| HSK40E | ER16, ER25, ER32 | 65, 75, 100 mm |
| HSK50E | ER16, ER32 | 80, 85 mm |
| HSK63E | ER32, ER40 | 90 mm (ER32), 75 and 120 mm (ER40) |
The left-hand thread HSK63F ER40 holder takes the left-hand nut 46140-L.
Collets: ER collets by size and SYOZ & EOC Collets. Other HSK holders: HSK Shrink Fit Holders and ETP Hydro-Grip HSK63F Hydraulic Chucks.
